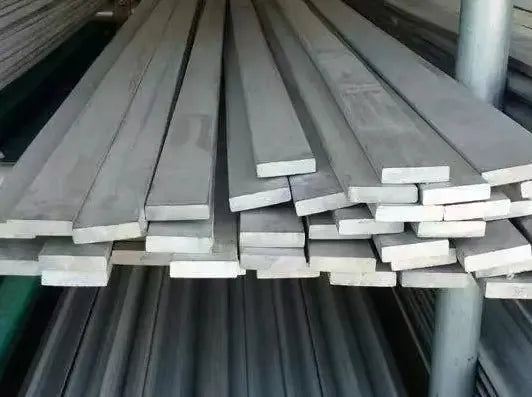

316L Stainless Steel Flat Bar

The 316L stainless steel flat bar represents a premium grade in the austenitic stainless steel family. As a molybdenum-bearing grade, this stainless steel flat bar ranks as the second most popular choice after grade 304. What sets the 316L variant apart is its low carbon content, which prevents harmful precipitation during welding at temperatures between 800°F and 1500°F, making it ideal for heavy gauge welded components.

Technical Specifications of 316L Stainless Steel Flat Bar

Material Properties:

• Density: 8.0 g/cm³
• Melting Point: 1400 °C
• Proof Stress: 200 Min MPa
• Tensile Strength: 500 - 700 MPa
• Hardness Brinell: 215 Max HB

Performance Characteristics: The 316L stainless steel flat bar exhibits:

• Excellent Corrosion Resistance
• Good Heat Resistance
• Very Good Weldability
• Good Cold Working Properties
• Good Machinability

Applications and Industries

This versatile stainless steel flat bar finds extensive use in:

• Marine Applications
  • Boat Fittings
  • Coastal Balustrading
• Industrial Equipment
  • Brewery Equipment
  • Heat Exchangers
  • Food Processing Equipment
• Chemical Industry
  • Chemical Transportation Containers
  • Petrochemical Equipment
• Medical and Laboratory
  • Medical Implants
  • Laboratory Benches
  • Scientific Equipment

Engineering Data

Thermal Properties:

• Thermal Conductivity: 16.3 W/m.K
• Thermal Expansion: 15.9 x10^-6 /K
• Electrical Resistivity: 0.74 x10^-6 Ω .m
• Modulus of Elasticity: 193 GPa
• Elongation A50 mm: 40 Min %

Note: While 316 and 316L stainless steel flat bars share similar properties and pricing, the 316L grade's superior weldability makes it the preferred choice for applications requiring extensive welding. Both conform to EN 10088-3, 1.4401 standards.
