PH 15-7 Mo Stainless Steel Strip

Type 15-7MO® stainless steel strip is a premium semi-austenitic precipitation-hardening stainless steel that delivers exceptional strength and hardness, coupled with superior corrosion resistance and minimal heat treatment distortion. This versatile PH 15-7 Mo stainless steel strip can be easily formed in its annealed condition and achieves optimal properties through simple heat treatments.

Chemical Composition of PH 15-7 Mo Stainless Steel Strip

Our precision-manufactured stainless steel strip contains:

• Carbon: 0.090 max
• Manganese: 1.00 max
• Silicon: 1.00 max
• Chromium: 14.00-16.00
• Nickel: 6.50-7.75
• Molybdenum: 2.00-3.00
• Aluminum: 0.75-1.50
• Phosphorus: 0.040 max
• Sulfur: 0.040 max
• Iron: Balance

Physical Properties and Performance Characteristics

The PH 15-7 Mo stainless steel strip offers:

• Density (Condition A): 0.28 lbs/in³ (7.80 g/cm³)
• Thermal Conductivity at 200°F (93°C): 112 BTU/hr/ft²/in/°F (16.2 W/m·K)
• Modulus of Elasticity: 29 x 10³ ksi (200 x 10³ MPa) in tension
• Magnetic Properties:
  • Annealed: Weak ferromagnetic
  • Heat Treated: Strong ferromagnetic

Available Forms and Mechanical Properties

Our stainless steel strip is available in:

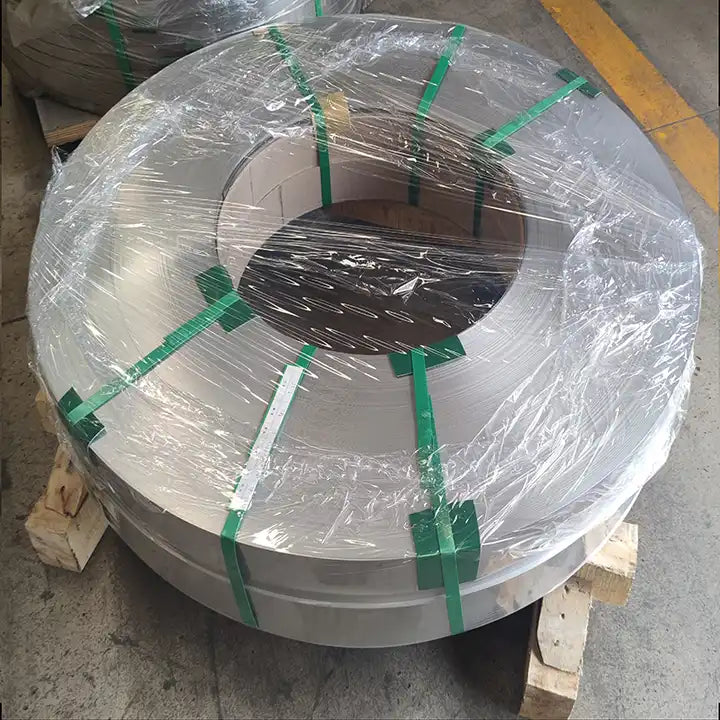

• Coil - Strip, Foil, Ribbon
• Wire - Profile, Round, Flat, Square

Annealed Properties:

• Ultimate Tensile Strength: 150 KSI max (1035 MPa max)
• Yield Strength (0.2% offset): 55 KSI max (380 MPa max)
• Elongation: 20% min
• Hardness: Rb 92 max

Condition C Properties:

• Ultimate Tensile Strength: 200 KSI min (1380 MPa min)
• Yield Strength (0.2% offset): 175 KSI min (1205 MPa min)
• Elongation: 1% min
• Hardness: Rc 41 min

For applications demanding exceptionally high strength, cold-reduced PH 15-7 Mo stainless steel strip in Condition CH 900 is particularly valuable where limited ductility and workability are acceptable. This specialized stainless steel strip excels in applications requiring high strength at elevated temperatures.

For custom tempers and heat treatment specifications of our PH 15-7 Mo stainless steel strip, please contact our Technical Service team for expert guidance and support.
